What is Osseointegration

Osseointegration was discovered in the 1950s by professor Per -Ingvar Branemark and is based on the ability of human bone cells (orange) to attach to a metal surface (green). To date, osseointegration is used for permanent anchorage of artificial limbs to the human skeleton. In a surgical procedure a metal (titanium) implant is inserted into the bone of the arm or leg and this implant penetrates through the skin. The artificial limb (prosthesis) is easily attached to this implant with a connector.

Socket vs Osseointegration

Advantages of osseointegration

  • Increased prosthetic use
  • Longer walking distances
  • Better sitting comfort
  • No skin problems
  • Stable and safer standing and walking
  • Osseoperception
  • Quickly on and off
  • Better quality of life

Types of Amputation

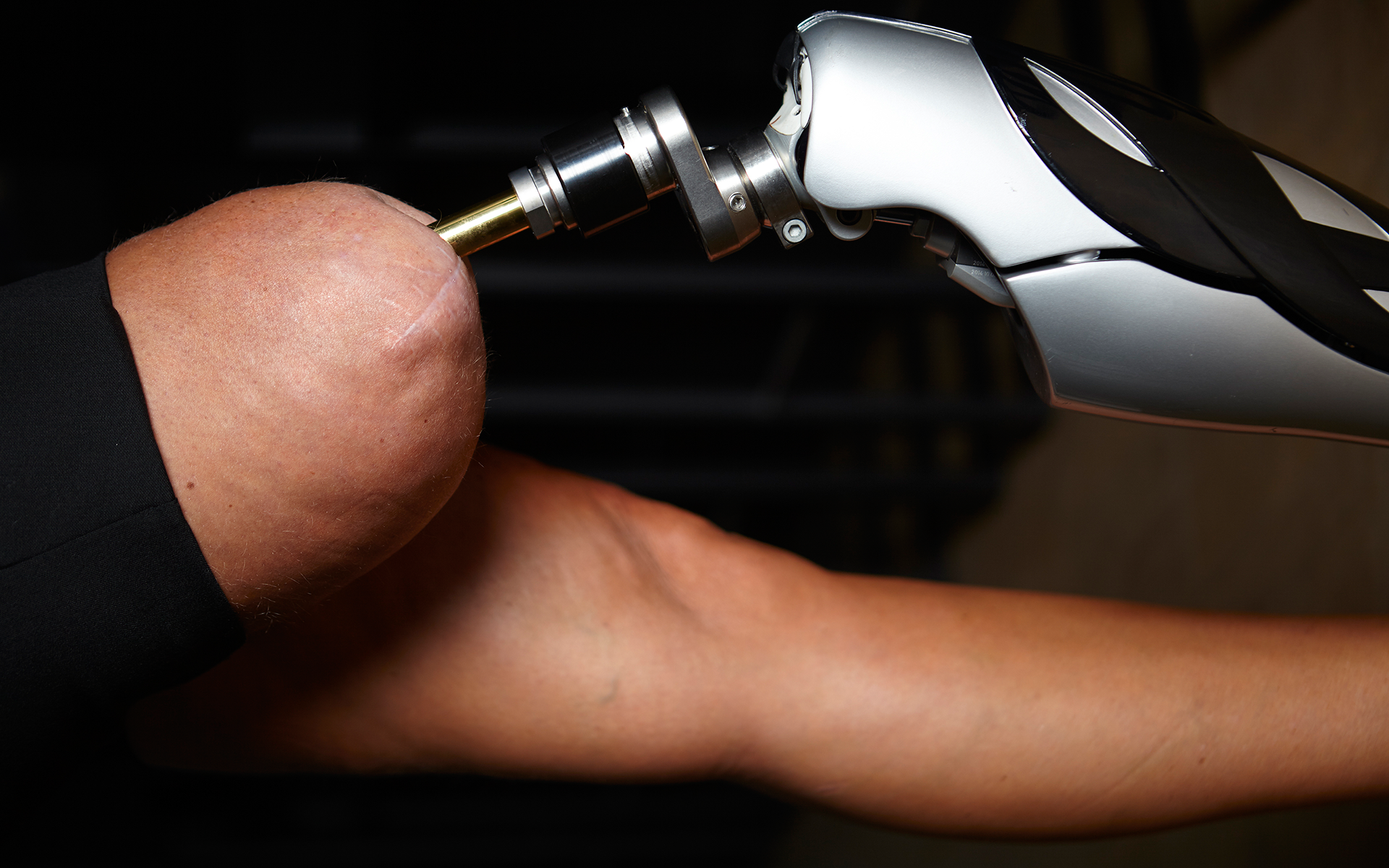

Above knee level

Types of Amputation

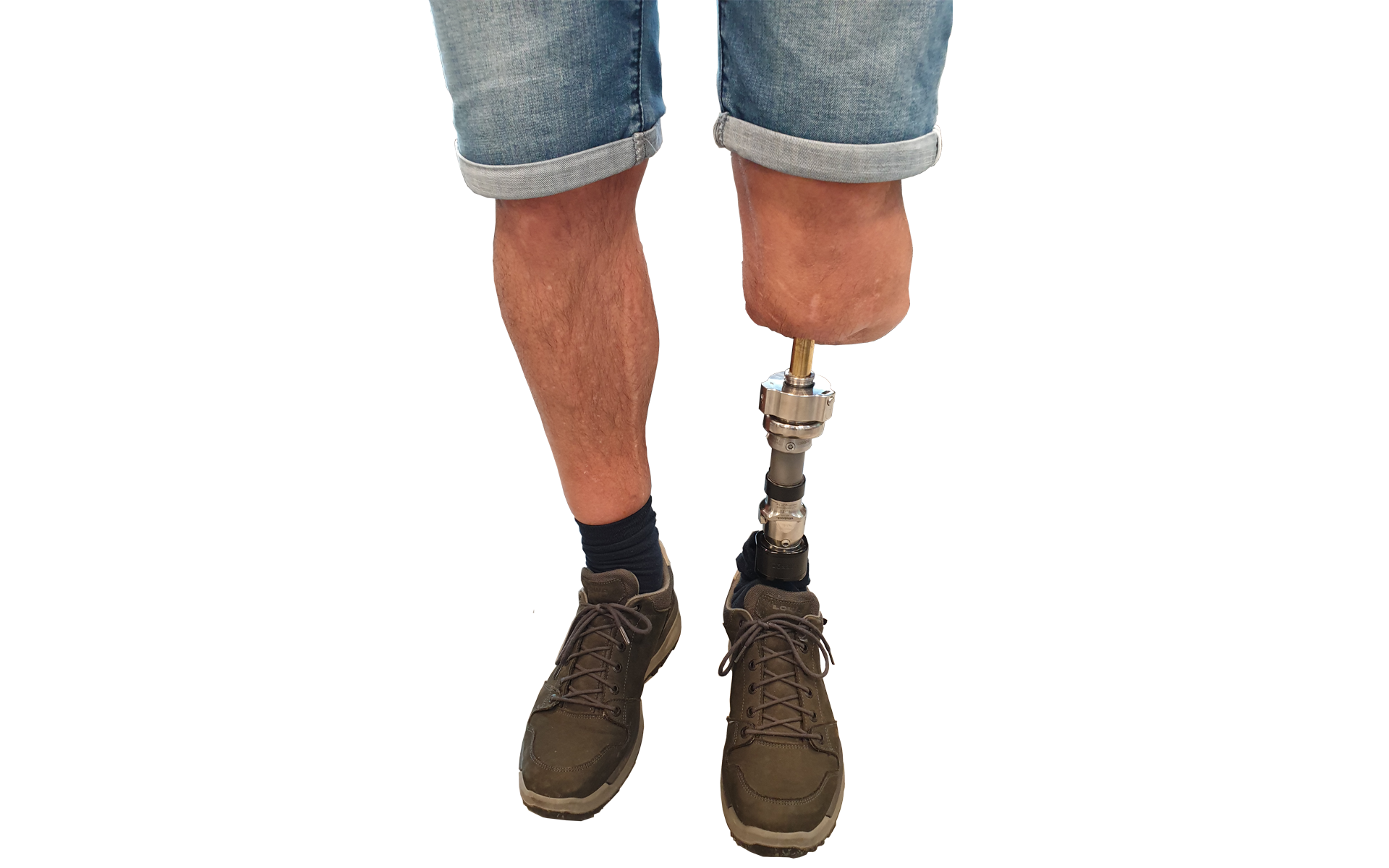

Below knee level

Types of Amputation

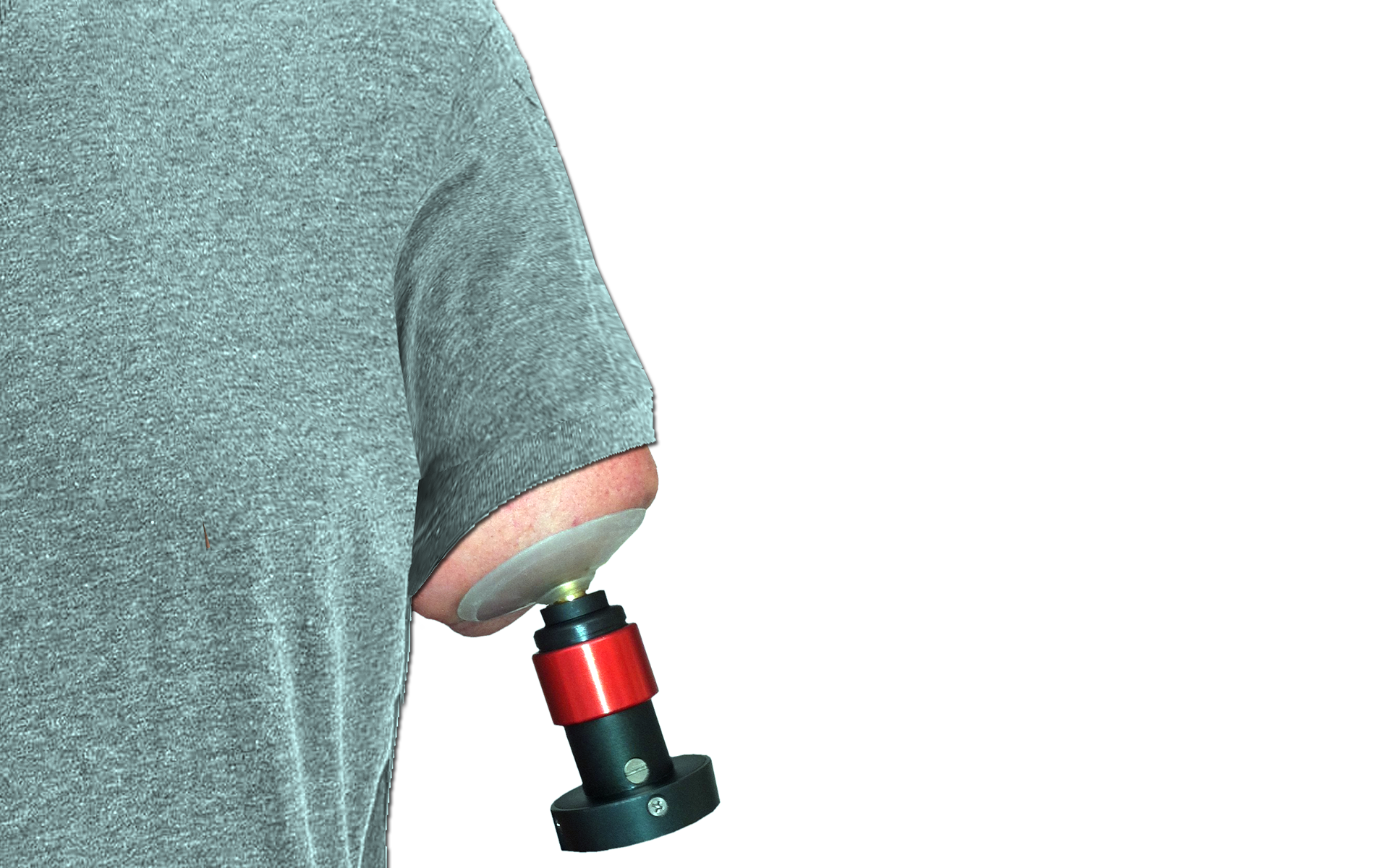

Above elbow level

The osseointegration system:

Press fit patient specific tibia & femoral implants

This prosthesis is developed by the osseointegration pioneers of OTN B.V. in The Netherlands and is the system with a long and large follow up. There is broad experience across Europe with this osseointegration system. The design and implantation technique was derived from orthopedic hip prostheses. This prosthesis is 3D printed in Titanium 6 Aluminium 4 Vanadium with a 3D mesh surface.

The osseointegration capacity of this prosthesis is optimized to meet the individual patients needs, therefore the prosthesis can be load bearing much earlier than other systems. The osseointegration period is 6 weeks and there are osseointegration clinics that allow full weight bearing on the osseointegration system immediately after single stage surgery. This titanium prosthesis has the same features as current orthopedic implants;  strong and solid. The osseointegration is quick and the rehabilitation period short.

More Information:

Osseointegration study

In 2011, the Radboudumc AOFE Clinic in The Netherlands carried out a socket versus osseointegration study in the 22 patients. Gait and quality of life were assessed. In this study it was found that prosthesis use increased from 56 to 101 hours per week, walking speed increased with 32% and walking with an osseointegration prosthesis cost 18% less energy. With osseointegration, the prosthesis-related-quality of life improved from 39 to 62 on a 0 to 100 scale.

Are there any disadvantages of osseointegration ?

Osseointegration is a safe treatment. Inflammation of the bone is rare. A disadvantage is that the area where the implant penetrates the skin (=stoma) needs to be cleaned with water and soap twice daily. This is comparable with brushing teeth. In some cases the skin at the penetration area may become irritated. In the first year after implantation you may have intensive muscle pain. This muscle pain disappears as soon as the stump muscles become fitter and stronger.

What happens with the bone with an osseointegration prosthesis?

Most patients treated with osseointegration have weak bone because of disuse osteoporosis. In the socket prosthesis the bone is not loaded and the stump muscles are not active. This may result in decreased muscle volume and weaker bone. With osseointegration the natural load of the bone is restored and the stump muscles are reactivated to stabilize the bone.

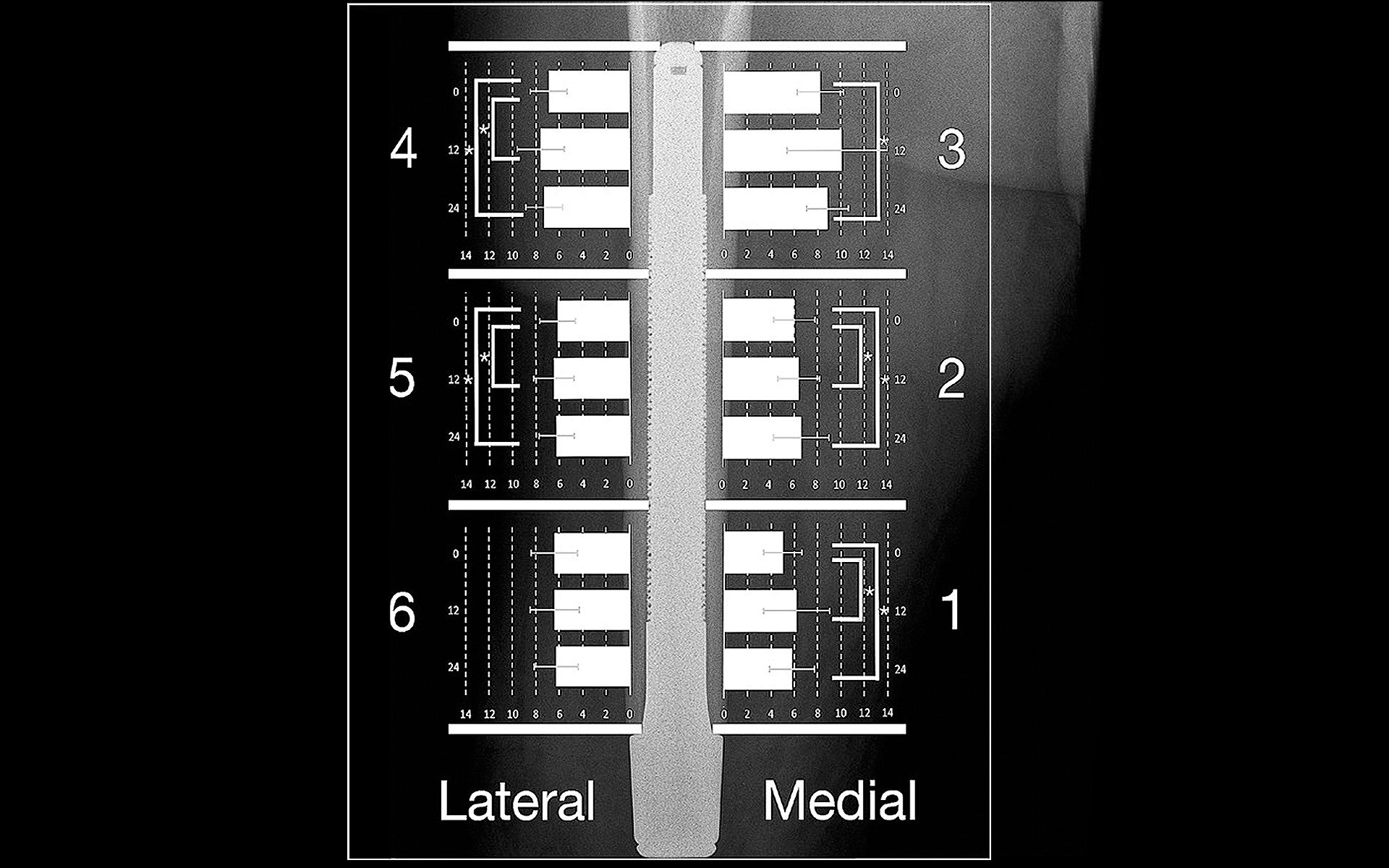

In the Radboudumc Osseointegration Clinic in The Netherlands, bone remodeling processes have been evaluated and the data show that the bone around the osseointegration implant becomes thicker and stronger.

Bone remodeling study

In Europe most health insurance companies reimburse the osseointegration treatment. Before your first consultation with the osseointegration team you will have to get an agreement of your insurance company about the reimbursement.

With an osseointegration prosthesis you can do all daily life activities including taking a bath, swimming in the sea, river, lake, pool, going in the sauna, bicycling, sailing etc. Contact sports including; fighting, soccer and skiing are not recommended. You may do these sports without wearing your prosthesis.

 You are a good candidate for osseointegration when:

  • you experience problems with your socket (perspiration, skin problems, pain)
  • your walking distance is limited because of your socket
  • you can‚Äôt sit comfortably with your socket
  • you often lose your prosthesis during daily activities
  • you have back pain because you stand or sit not straight or limb while you walk

The osseointegration treatment in summary:

After agreement of your Insurance company you send us a request for an intake. The intake procedure is to evaluate whether you are a suitable candidate for osseointegration. The intake is to inform you about the osseointegration procedure this also includes a consultation with a patient with an osseointegration prosthesis. When you are a suitable candidate you will be prepared and scheduled for surgery.

The metal implant(Titanium) will be inserted into the bone of your stump. If necessary the length of the bone will we adjusted and the soft tissue corrected. After the implantation the wound is closed. Then a small skin incision is made and a connecting adapter of the osseointegration prosthesis is put through this incision into the implant. This skin penetration point is called a stoma. After the surgery you will be observed in the hospital for three to five days. In the hospital you will get instructions how to clean the stoma. Your prosthesis will be prepared for the connection with the osseointegrated implant by our prosthetists. After discharge from the hospital you will stay during the rehabilitation in a hotel or apartment close to the hospital.

One week after surgery the osseointegration rehabilitation starts. This takes place every day in our rehab department. You step-by-step learn how to load the prosthesis and how to walk with crutches. Below knee amputees will complete the rehabilitation in three weeks. Above knee amputees complete rehabilitation in five weeks  but will have to do exercises at home before they are able to walk fully weight bearing on the osseointegration prosthesis without crutches.
